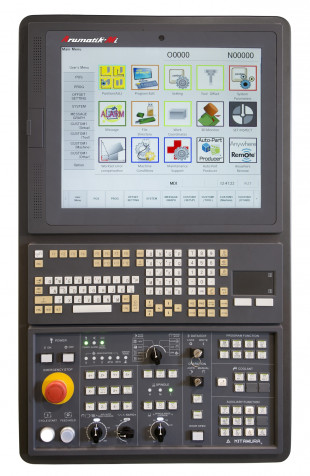

Advanced CNC Control
Pioneering Icon CNC Operation
Kitamura’s original Arumatik-Mi control offers the user exclusive feature rich functions to maximize and fully customize the operator experience.
- Maximizes Operator Convenience
- Customizable for Ultimate Productivity
- High Speed Processing, Super Smooth Control Process
- Fanuc User-Friendly
- Unlimited Lifetime Software Upgrades
- Developed for Continual Advancements

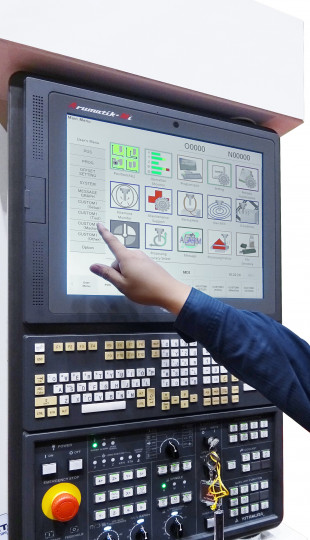

Powerful, Unique Features on the 19” LCD

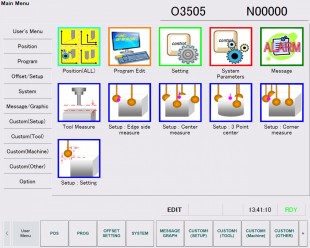

- Customized main menu touch screens

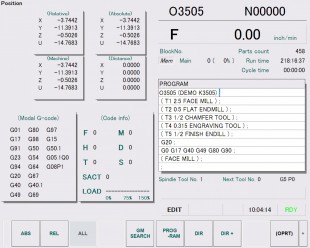

- Visual work setting screens
- Maintenance Support Functions
- Video Guidance
Fanuc User Friendly
- Ability to run current Fanuc programs
- Little to no modification to existing programs is necessary
- Looks and feels like a Fanuc Control
- Comfortable and convenient for those customers who are unfamiliar with anything else
Maintenance Support Function

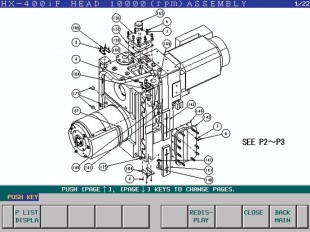

- On screen parts identification and ability to visually enlarge machine parts list
- Alarm release guidance screens – Instructs where to check should an alarm occur
- Periodic maintenance screens help to maintain optimum machine condition, offer longer machine life expectancy and reduce down time.

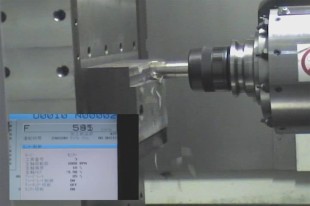

Kitamura Monitor/Adaptive Control
- Detects tool wear and controls cutting federate automatically by monitoring live spindle load during machining.
- Tool life is maximized and cycle time is shortened dramatically by adapting to the change in cutting conditions.
- Additional benefits include reduction in non-cut time and the prevention of machine crashes/human error.
Standard Features, Advanced CNC Technology
- High precision contour control with 1680-block look ahead, 2800/blocks per second processing speeds.
- 1280 Meters of Memory
- 2GB CF/USB Data Server
- 700 Custom Macro Variables
- 102 Pairs Workpiece Coordinate System
- 200 Tool Offsets
