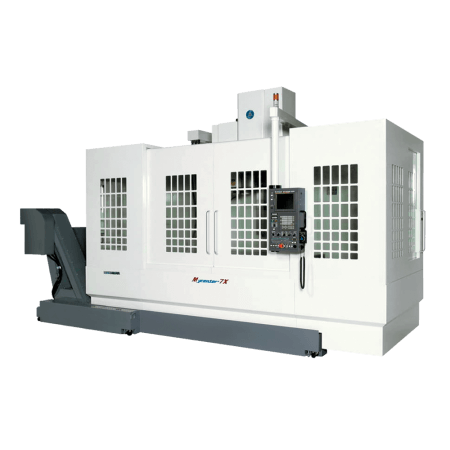

Mycenter-7X#40 Vertical Machining Center

Table Size: 25.6” x 66.9” (650 x 1,700mm)
Travel (X, Y, Z): 60.2” x 25.6” x 27.0”
(1,530 x 650 x 686mm)
Spindle Taper: NST No. 40, NST No. 50
Spindle Speed: 20~10,000rpm (40~15,000rpm Opt.) – Gear Drive, 4-Step
Tool Storage Capacity: 30 Pcs. (40, 60 Opt.)
Tool Change Time (T-T/C-C): 2.0 Sec. /6.5 Sec.
Rapid Feed (X, Y x Z): 945ipm (24m/min) x 787.4ipm (20m/min)
Power Requirement: 40KVA

• Ideal for machining larger size parts and molds

• Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”

• Rigid Meehanite cast iron construction with solid box ways

• Choice of #40 or #50 taper spindles for maximum machining flexibility

• Standard 30-Tool ATC with 40 or 60 tools as available options

• Flexibility with the ability to add 4th/5th axis in the field

• Powerful geared spindles delivery high torque and high speeds for maximum machining flexibility
